RG-5 Alpha/Beta Probe

　　RG-5 Alpha/Beta Measurement Probe

　　Introduction

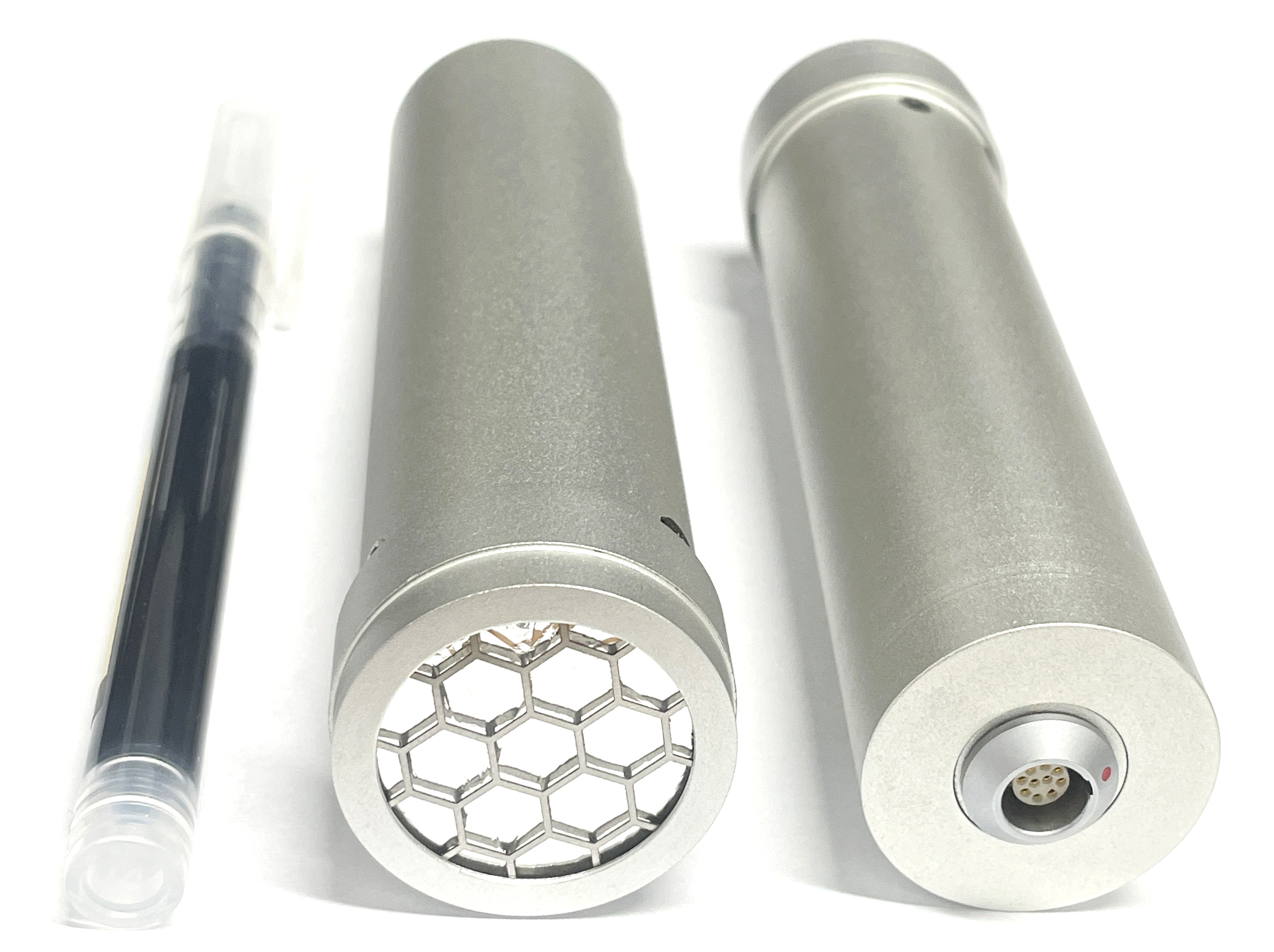

　　The RG-5 Alpha/Beta Measurement Probe is a miniaturized surface contamination measurement probe using Si-PM + dual scintillation technology architecture. This probe has a compact size, strong anti-interference ability, and stable and reliable measurement data. It is suitable for working conditions where traditional large-area surface contamination detectors cannot measure, such as radioactive pipelines, skin, wound measurements, etc.

　　The probe uses a plastic scintillator and zinc sulfide to form a composite probe, achieving simultaneous measurement of alpha and beta/gamma rays. Si-PM replaces photomultiplier tubes, overcoming the disadvantages of photomultiplier tubes that require high voltage and are not resistant to impact, vibration, magnetic fields, etc. The low-noise circuit design allows the probe to work stably in the temperature range of -40℃ to +50℃. The built-in digital waveform discrimination algorithm overcomes the disadvantages of alpha ray energy caused by measurement distance such as cross-talk ratio and low efficiency, making it stable and reliable.

　　Product Features:

　　l Detector type: Si-PM + dual scintillation detector;

　　l Replaceable end window design, greatly improving equipment maintainability;

　　l Sensitive area: effective diameter 20mm;

　　l Independent alpha output channel and beta/gamma output channel, output mode: TTL pulse;

　　l Detection efficiency:

　　Alpha: ≥35% (measurement conditions: Am-241 or Pu-239 source, 2π direction)

　　Beta: ≥35% (measurement conditions: Tl-204 or Sr-90/Y-90, 2π direction)

　　l Cross-talk ratio: alpha into beta (Po-210): <5%, beta into alpha (Sr-90): <1x10-4;

　　l Operating voltage: +5V;

　　l Power consumption: <150mW.
