Alamos Series Alpha Spectrometer
Introduction
Alamos Series Alpha Spectrometer is a complete digital alpha spectrometer system independently developed by Jiechuang Nuclear Instruments (Beijing) Technology Co., Ltd. It is one of the most important laboratory measurement instruments for quantitative measurement of alpha content in samples. It is a multi-channel, 8K-channel, digital signal processing-based spectrometer system, integrating front-end signal polarity adjustment, fast digital analog-to-digital converter (ADC), pole/zero cancellation, digital baseline restorer, programmable trapezoidal filter, digital oscilloscope, digital peak stabilizer, adjustable high voltage, zero dead time correction, etc.
Alamos Series Alpha Spectrometer can be configured as a multi-channel system. Users can select chamber size and quantity according to needs, forming a 1~8 channel spectrometer system. It is equipped with multiple communication methods to meet users' different application needs. With the AlphaSense spectrum acquisition and analysis software with independent intellectual property rights developed by our company, it can perform data acquisition, display, control, system energy/peak shape calibration and digital oscilloscope operations. Users can control the spectrometer to acquire spectrum information and analyze it through this software.
System and Equipment Composition

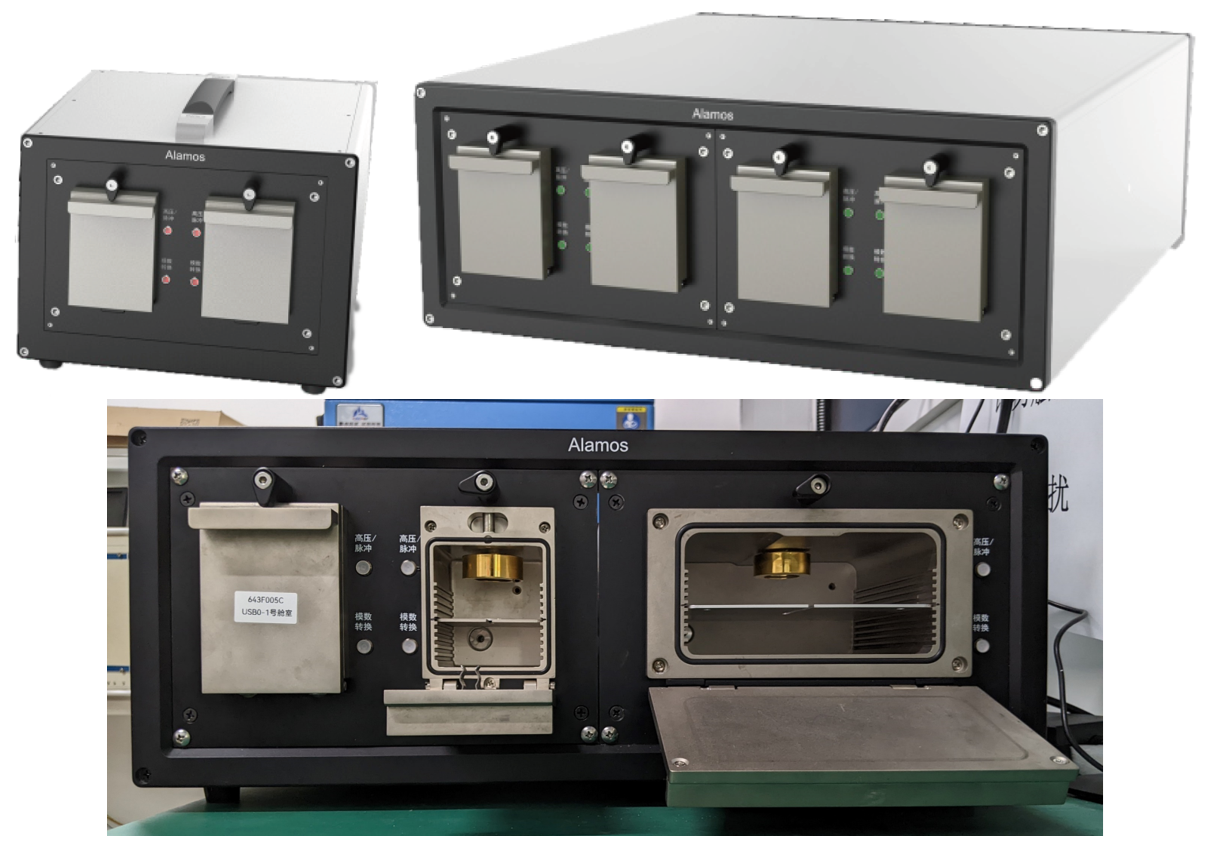

Alamos Series Alpha Spectrometer system composition is shown in the figure below:
