RGS-300 Radionuclide Identifier
Introduction

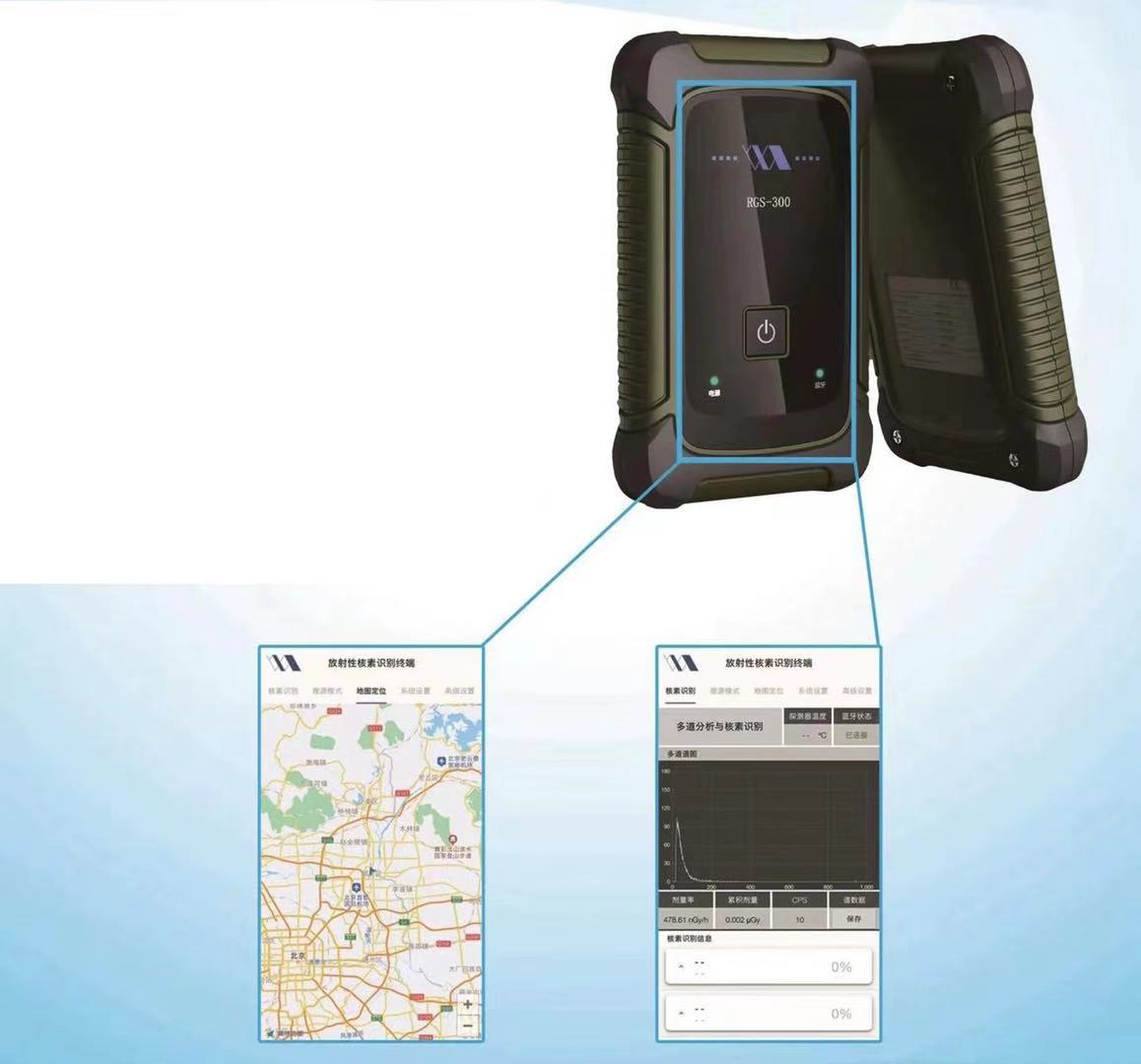

The RGS-300 Radionuclide Identifier has small volume, light weight, and is easy to carry. It uses solid-state photomultiplier tube plus scintillation detector to form a high-sensitivity system. The equipment has a built-in NaI detector with effective size greater than 2 cubic inches, greatly improving sensitivity. The digital MCA ensures unrestricted performance. Data transmission is via Bluetooth. Through a mobile phone, users can obtain real-time nuclear data information, including real-time spectrum display, nuclide identification information, and real-time dose rate data. Combined with the GPS location information of the phone, path information can be drawn.
Product Features
l Simple and easy to use, single button operation mode, multiple status indicator lights, convenient for viewing equipment operation status;
l Automatic continuous peak stabilization, automatic range switching;
l Equipped with mobile phone APP, measurement data displayed in real time, simple and intuitive;
l Digital MCA design, strong overload resistance and high count throughput;
Technical Parameters
l Gamma detector: 60*35*15mm NaI detector, resolution ≤7.5%@662keV;
l Gamma energy range: 20keV~3MeV;
l Gamma dose rate measurement range: 10nSv/h~200uSv/h, (optional 10nSv/h~10mSv/h product);
l Gamma cumulative dose range: 100nSv~10Sv;
l Neutron detector: 6Li;
l MCA channels: 4096 channels;
l Count throughput: ≥100Kcps;
l Operating temperature range: -20℃~+45℃;
l Overall dimensions: approximately 130mm×80mm×21mm (L×W×H);
l Weight (with battery): ≤300g;
l Operating time: built-in lithium battery, continuous working time not less than 18h at room temperature;
l Other: open software and hardware interfaces, convenient for user secondary development.
