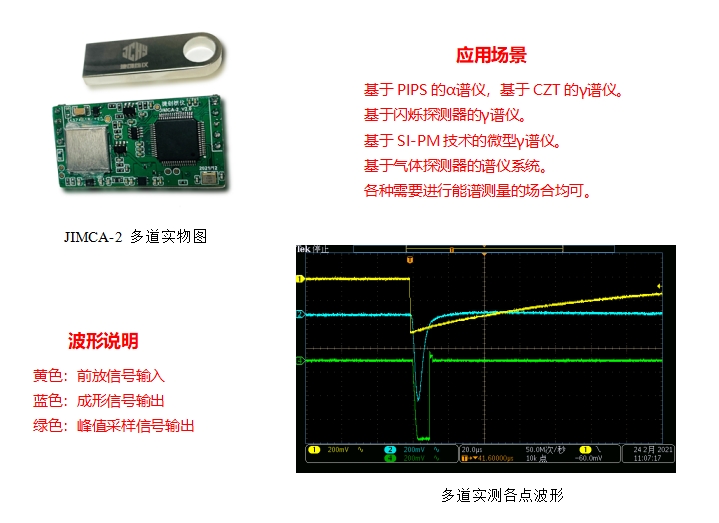

JIMCA-2 Mini Nuclear Pulse Acquisition System
Introduction
The JIMCA-2 Mini MCA is a revolutionary product that uses microelectronics technology to integrate nuclear electronics dedicated circuits into a single chip. The system supports direct readout of various detectors or pulse signal readout with exponential decay characteristics.
It integrates charge sensitive preamplifier, Gaussian shaping main amplifier and peak hold circuit internally. It uses low-power microcontroller for data acquisition and communication. Maximum channels are 4096, power consumption is less than 50mW, and overall size is less than 42 X 21mm.
The original purpose of this product is to provide low-cost, low-power, high-performance spectrum acquisition modules for nuclear instrumentation R&D enterprises, eliminating the need for MCA-related development work. Component-level applications can build more complex products. The MCA communication protocol is completely open, and customized communication protocols are also available.
The company has a first-class R&D team with strong scientific research capabilities, providing full technical guidance during use.
Product Features
l Integrates charge sensitive preamplifier, Gaussian shaping main amplifier, peak hold circuit;
l Preamplifier can be software controlled on/off, charge sensitivity: 0.002V/fC~0.06V/fC;
l Can directly read out semiconductor or gas detectors, typical detectors: Si-PIN, PIPS, etc.;
