JCZT-SP tellurium zinc cadmium digital spectrometer
Introduction
The JCZT-SP tellurium zinc cadmium digital spectrometer is a system with promising development prospects in the field of gamma spectroscopy measurement. Its resolution performance is between high-purity germanium and lanthanum bromide. The spectrometer system is compact in design and integrates zero adjustment unit, coarse/fine gain adjustment unit, programmable high voltage unit, preamplifier power supply unit, temperature acquisition unit, digital gate control and communication unit, etc. It can be powered and communicated with a single USB.
The equipped GammaSense spectral analysis software is a complete set of spectral analysis software, which can provide real-time activity of radioactive samples, has the ability to analyze heavy peaks, and can analyze complex energy spectra. The results are presented in the form of reports, and users can directly print them out through a printer.

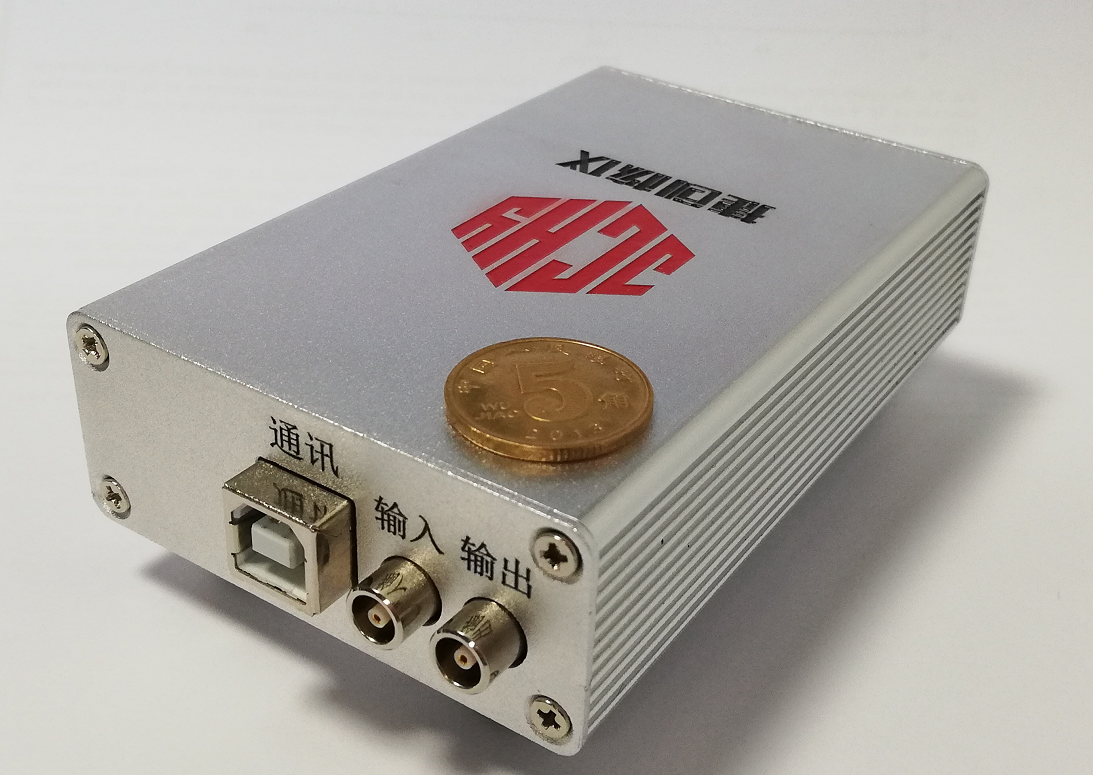

Multi channel physical images
Physical working diagram of the system
Product Features
USB power supply/communication, can provide various communication forms such as TTL/422, with an overall power consumption of less than 2W;
Detector: Both planar/hemispherical/coplanar grid types are available, with a sensitive volume of 5-1500mm3;
Provide+12V low-noise preamplifier power supply;
Multi channel features: 102420484096 software adjustable, 3-speed coarse gain software adjustable, 0.5-1.5 times fine gain software adjustable;
High voltage: 0~+-2000V software adjustable;
Spectral counting rate:>100kcp, pulse counting rate:>300kcps;
L size: 100 * 67 * 27mm, weight: less than 300 grams;
1 year free hardware warranty and lifetime free software upgrade;
Open all software and hardware interfaces to facilitate users' secondary development;
Operation Guide
l JCZT-SP is a high-performance semiconductorγ Introduction to Spectrometer System and Electronics _ Bilibili
