ARES-32T Digital Spectrometer
Introduction
The ARES-32T Digital Spectrometer is a concentrated embodiment of the company's comprehensive technical capabilities. It is a small single-channel 32K-channel digital spectrometer that supports almost all types of detectors such as HPGe, NaI, LaBr3, Cd(Zn)Te.
It integrates signal polarity adjustment unit, fast analog-to-digital conversion (ADC) unit, automatic pole/zero cancellation unit, digital baseline restoration unit, digital pulse shaping unit, and advanced application digital anti-coincidence/anti-cosmic interface unit. The system can be directly called and read through GammaSense spectrum analysis software.
The GammaSense spectrum analysis software is a complete spectrum analysis software that can provide real-time radioactivity activity of samples, with peak resolution capability to analyze complex spectra, and results are given in the form of reports that users can print directly.

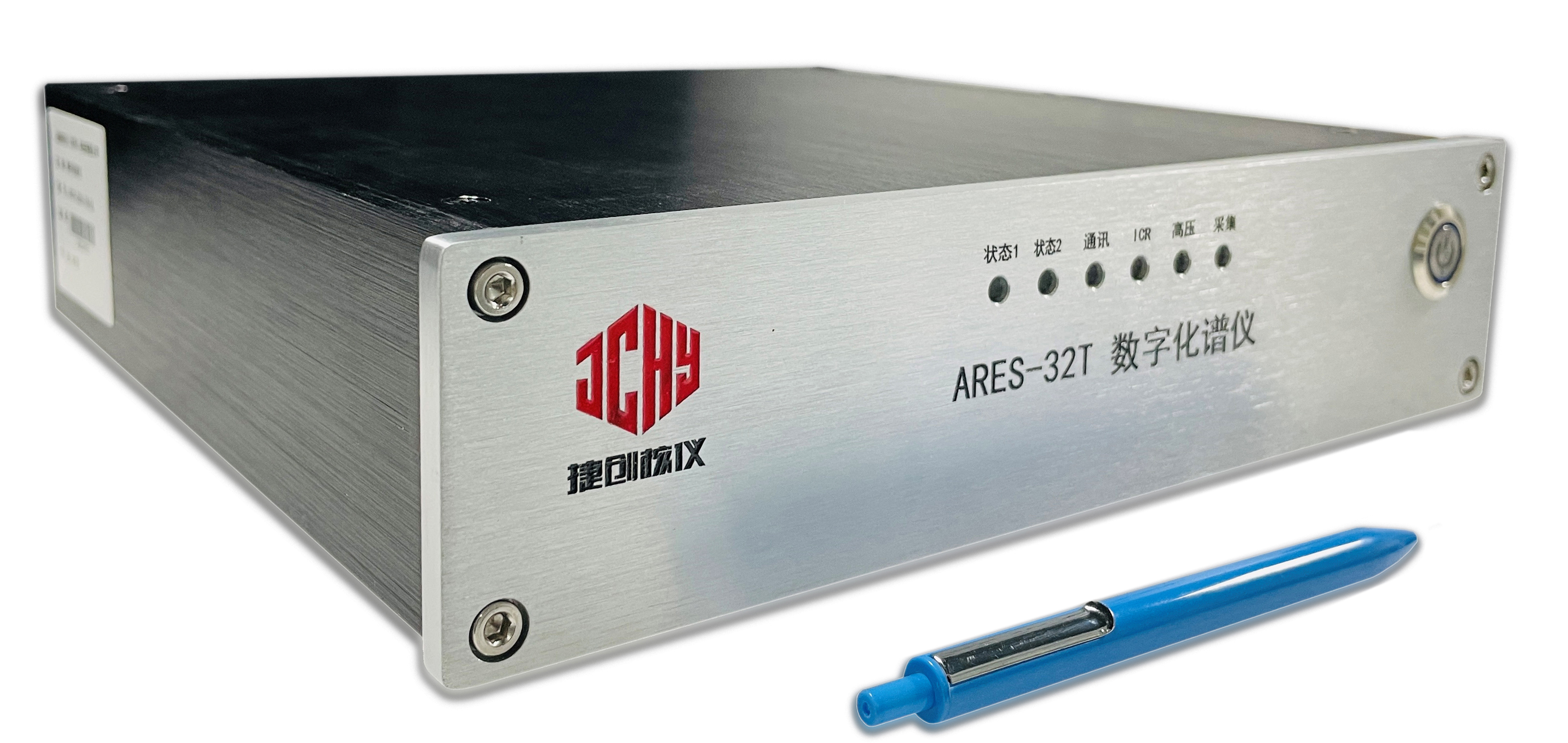

ARES-32T Main Unit Photo
Hardware Features
l Input signal can be positive or negative, supports RC feedback type preamplifier and TRP reset type preamplifier;
l Single-channel digital spectrometer, maximum channels: 32768;
l Six coarse gain ranges software adjustable, 0.5~1.2 fine gain software adjustable;
l Shaping time software adjustable, adjustment range: 0.8us~24us, flat top time: 0.1~2.4us;
l Auto pole-zero, auto optimization;
l Noise suppression coefficient software adjustable, gated baseline restoration software adjustable;
l 2 channels programmable ±500V~±5KV high voltage software adjustable;
l Integrated digital gated port, can build digital anti-coincidence/anti-cosmic system;
l Integral nonlinearity < ±0.02%, differential nonlinearity: < ±0.8%;
l Count throughput: 100Kcps;
l Built-in virtual oscilloscope, can support more than 4 channels signal display simultaneously, simple and clear operation interface;
l Supports continuous mode and LIST mode data transmission;
l Stable and reliable for long-term operation, zero drift less than 1 channel in 72 hours, gain instability less than 0.2% in 72 hours;
l Zero temperature coefficient: less than 0.2 channels/℃; gain temperature coefficient: less than 0.1%/℃;
l Communication interface: USB and Ethernet, supports hot-swapping;
l Dimensions: 22cm L x 22cm W x 6cm H; weight: less than 3kg;
l Power supply: input voltage +12V, power consumption less than 6W.
