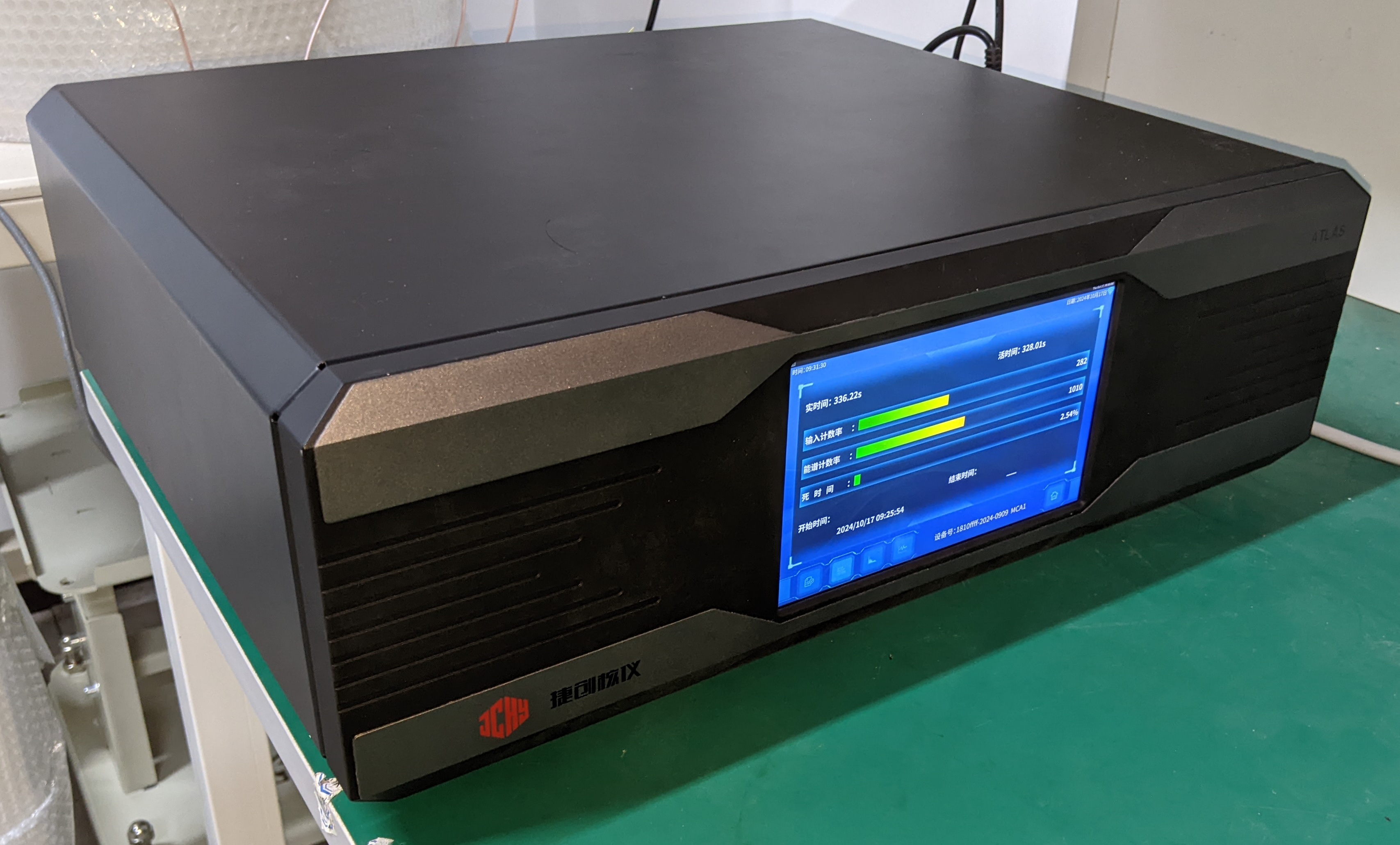

ATLAS HPGe Digital MCA

Introduction

        ATLAS is a digital MCA system independently developed by Jiechuang Nuclear Instruments (Beijing) Technology Co., Ltd., concentrated embodiment of the company's comprehensive technical capabilities. It is a desktop low-noise high-performance single/dual-channel 32/64K-channel digital MCA. It integrates signal polarity adjustment unit, fast analog-to-digital conversion (ADC) unit, automatic pole/zero cancellation unit, digital baseline restoration unit, digital pulse shaping unit, and advanced application digital anti-coincidence/anti-cosmic interface unit. It supports almost all types of detectors such as HPGe, NaI, LaBr3, Cd(Zn)Te. The MCA can be directly called and read through GammaSense spectrum acquisition and analysis software with independent intellectual property rights.

Product Features

• l  Single/dual-channel digital spectrometer, maximum channels 65536, software adjustable;
• l  Suitable for various types of spectroscopic detectors such as semiconductor detectors, scintillation detectors;
• l  Auto pole-zero, auto optimization trigger threshold, phase superposition;
• l  Shaping time, coarse gain, noise suppression, baseline restoration adjustable;
• l  Integrated digital gated port, input/output ports, convenient for building coincidence/anti-coincidence systems;
• l  Built-in virtual oscilloscope;
• l  Supports hot-swappable communication cables;
• l  Parameter settings and measurement data can be retained after power off;

Technical Specifications

• l  Single-channel and dual-channel digital spectrometer versions;
• l  Input signal can be positive or negative, supports RC feedback type preamplifier and TRP reset type preamplifier;
• l  Channel range: 512, 1024, 2048, 4096, 8192, 16384, 32768, 65536 channels software adjustable;
• l  Eight coarse gain ranges software adjustable, maximum coarse gain x128, 0.5~1.2 fine gain software adjustable;
• l  Shaping time software adjustable, adjustment range: 0.8us~24us, flat top time: 0.1~2.4us;
• l  Count throughput: 100Kcps;
• l  Auto pole-zero, auto optimization trigger threshold, phase superposition;
• l  Noise suppression level software adjustable, gated baseline restoration type software adjustable;
• l  Integrated 1/2 channel DB9 preamplifier power interface, 4/8 channel programmable high voltage power interface and 1 channel +13V/0.5A power interface;
• l  2/4 channels programmable ±500V~±5KV high voltage software adjustable, 2/4 channels programmable ±200V~±2KV high voltage software adjustable;
