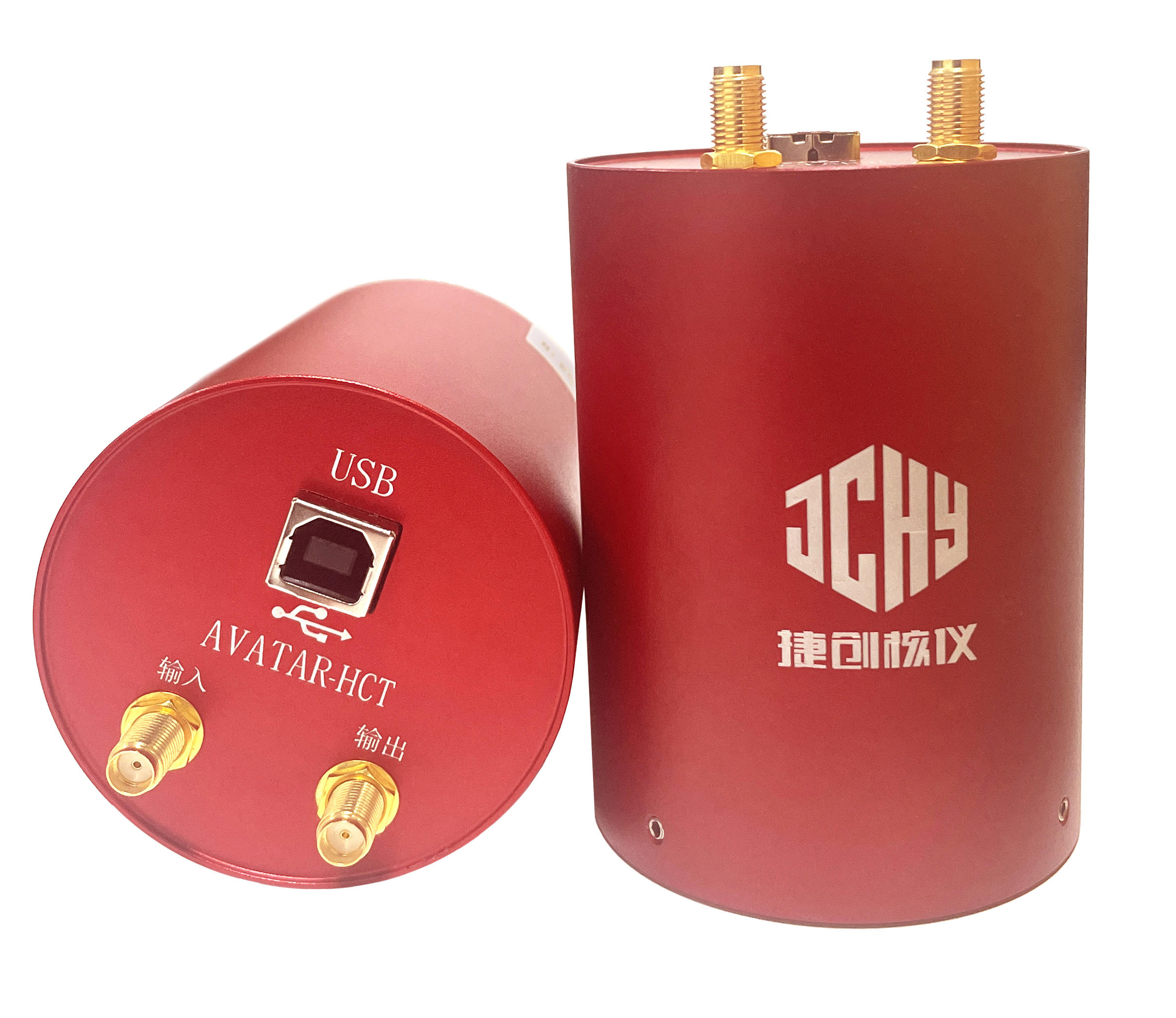

AVATAR-HCT Digital MCA
Introduction
The AVATAR-HCT Digital MCA is a concentrated embodiment of the company's years of technical accumulation in the field of scintillation MCA. This MCA is a brand new upgraded generation product, integrating voltage divider circuit, preamplifier, programmable gain amplifier, digital shaping filter, temperature acquisition and necessary power supply units. For different application scenarios, AVATAR-HCT Digital MCA opens all parameter setting interfaces and can dynamically adjust during spectrum measurement.
This MCA integrates multiple signal processing algorithms internally, including high-performance pulse height analyzer for spectrum acquisition, waveform discriminator for particle identification. The high-speed USB communication also supports LIST mode and virtual oscilloscope. It is a fully functional product.
Hardware Features
l Variable gain: 512, 1024, 2048, 4096, 8192 channels software adjustable;
l Coarse/fine gain software adjustable;
l Optional spectrum (MCA) mode, waveform (particle) identification (PSD) mode or spectrum/particle dual identification mode, can simultaneously perform high-resolution spectrum acquisition and waveform (particle) identification;
l Supports virtual oscilloscope, supports LIST mode data transmission;
l USB2.0 high-speed communication interface;
l Count throughput: 200Kcps;
l Temperature acquisition function, convenient for users to perform temperature compensation on probe;
l High voltage software adjustable: 0 to +1100Vdc, step 1V;
l Dimensions: 63mm(diameter)*86mm(length);
l Weight: 300g;
l Power supply: +5V, power consumption <1.5W;

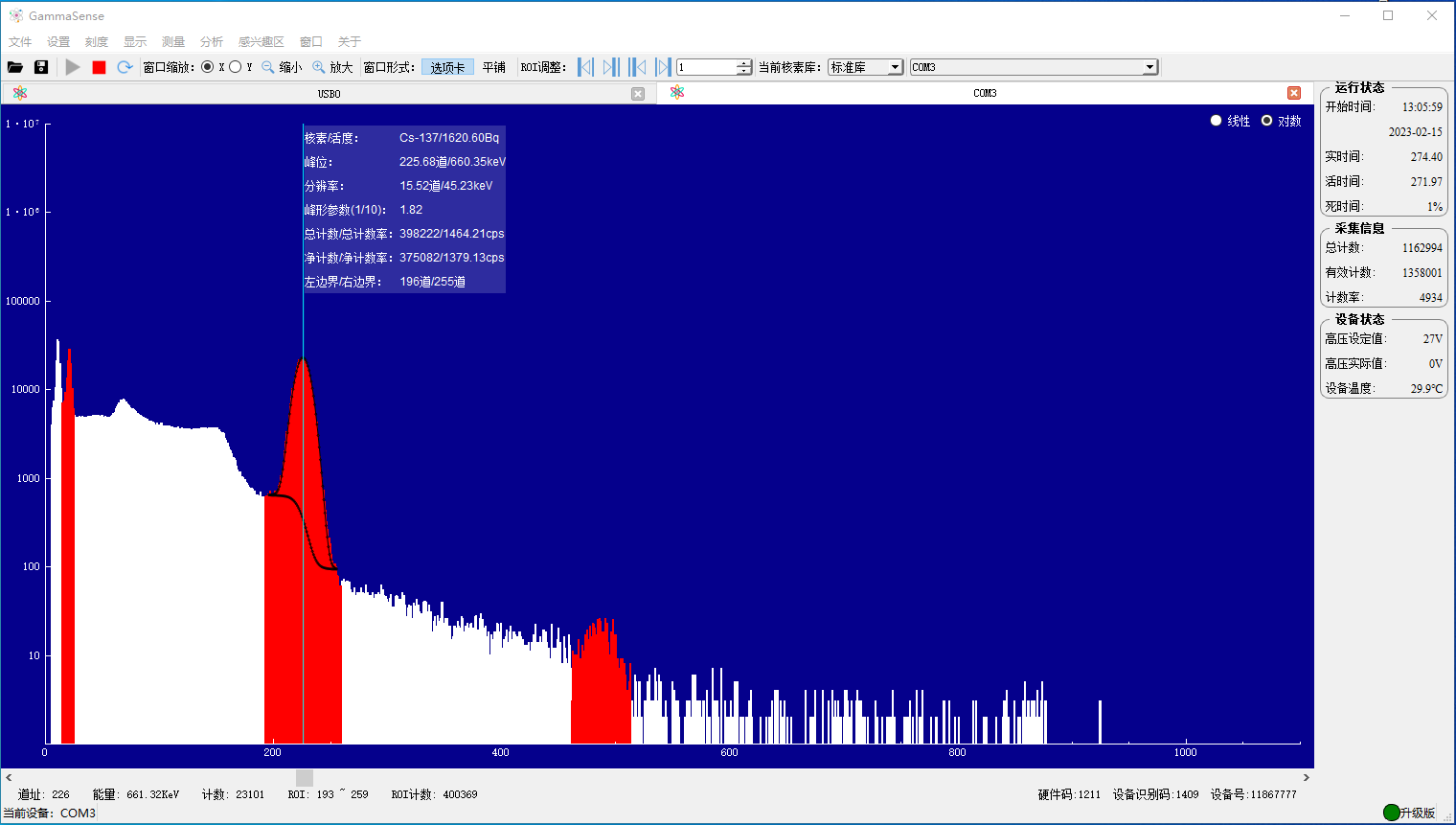

Spectrum Analysis Software Features
l Full English interface;
l Supports multi-MCA control and data display, supports virtual oscilloscope;
l Supports spectrum, energy/particle 2D spectrum and other displays;
l Supports energy calibration/efficiency calibration;
l Gaussian fitting + step function for net peak area calculation, supports peak resolution;
l Automatic activity report generation;

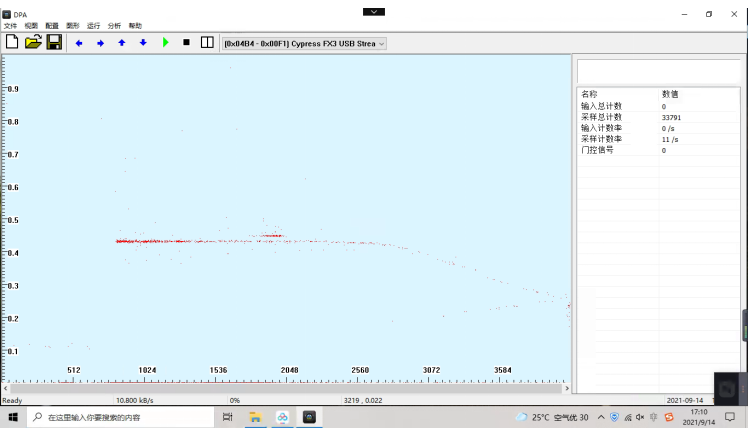

PSD Characteristics
l PSD performance: FOM factor greater than 2.5 with 2-inch NaI(Li) detector;
l Detector gamma energy resolution: better than 7.5%@662keV;
l Thermal neutron detection efficiency: up to more than 57%;
